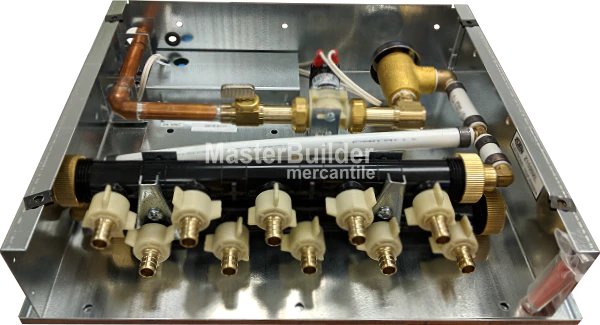

Zurn Z1020-10 Electronic Trap Primer, 10-Port Header

Zurn Z1020-10 Electronic Trap Primer, 10-Port Header

Features & Benefits:

• Lead-Free
• Low voltage (24VAC)
• Pre-programmed to provide six-second water injection into traps
• Complete with galvanized steel combination surface or recessed mount box and cover
• Also available as a Z1020XL, 5-Port Configuration

Product Specification:

ZURN Z1020-10 Electronic trap primer programmed as standard to provide a six second water injection to traps every twenty-four hours*, complete with galvanized steel combination surface or recessed mount box and cover, 1/2 [13] solder copper inlet connection, brass ball type stop valve, slow closing 24 VAC solenoid valve with integral strainer, 120 - 24 VAC transformer, brass atmospheric vacuum breaker, PEX waterway, and anti-scaling multi-port manifold with ten 1/ 2 [13] Male PEX outlet connections. (For copper connection outlets -CW option must be specified.)

Technical Details:

• Min. Pressure: 3 psi
• Working Pressure: 20 to 100 psig
• Default Settings:
• Frequency: 24 hours
• lnjection Time: 6 seconds
• Volume: 2 oz. min. per port
